Rating:
Thermal current Ith 10A 50/60Hz

Insulation voltage Ui 600V

Enclosed thermal current Ith 10A

Short-circuit current 1000A

AC-15 120V 6A, 240V 3A

AC-12 480V 1.5A, 600V 1.2A

DC-12 120V 2.2A, 240V 0.6A, 480V 0.4A

Ambient temperature: -20℃ to 60℃

Contact resistance: 50mΩ max (initial)

Mounting hole: 22mm/30mmφ

Type of contact: N/O, N/C, N/O + N/C

Lens color: Red, Green

IP Rating: IP65



Mechanical life:
Actuator: 1 million operations

Contact block: 1 million operations



Approvals:
UL, CSA, TUV, CE

Main switches are available in 3 & 4 pole, auxiliary contacts can be used for additional pole.
Handle type: Standard knob or knob with door clutch, padlock device type.

Main switches are available in 3 & 4 pole, auxiliary contacts can be used for additional pole.
Handle type: Standard knob or knob with door clutch, padlock device type.

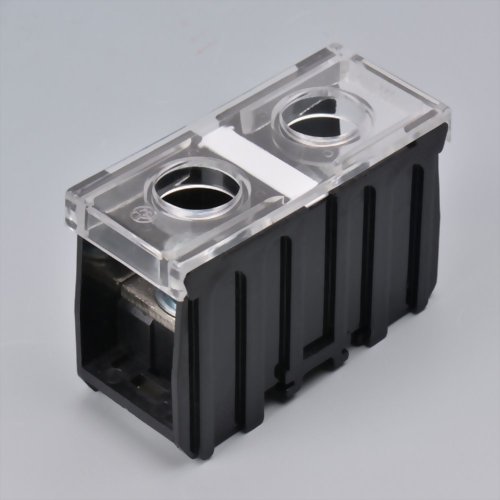

Rating: 200A 300VAC, 100mm2
Pitch: 39mm

Rating: 200A 300VAC, 100mm2
Pitch: 39mm

Rating: 100A 300VAC, 38mm2
Pitch: 32mm

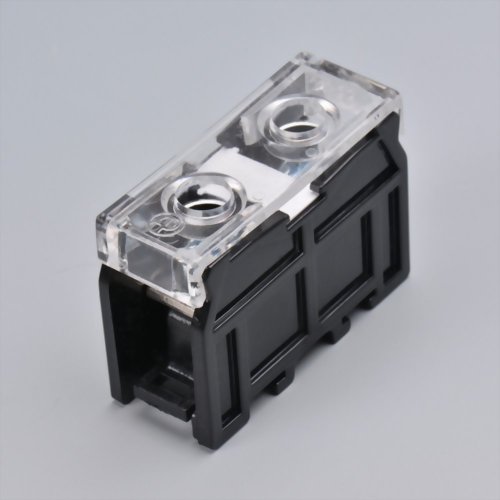

Rating: 60A 300VAC, 6mm2
Pitch: 22.4mm

Rating: 80A 600VAC, 22mm2
Screw: M6 mm
Pitch: 19mm
Certification: CE

Type: Surface mounting
Rating: 5A 250VAC

Rating: 10A 250VAC
Type Switch enclose: SPDT Micro Sw.
Contact: 1A1B
Cord Spec. PVC, 0.75mm2, 3C
Enclosure material: Ferrous cover

Rating: 300V 10A

Rating: 300V 10A

Rating: 300V 10A

Rating: 300V 10A

Rating: 300V 10A

Rating: 300V 15A

Rating: 300V 15A

Rating: 300V 10A

Rating: 300V 10A

Control Station Enclosures B-2A

Control Station Enclosures B-1A

Product: CS22-1O/C with single hole enclosure

Product: DPB22-1O/C with single hole enclosure
